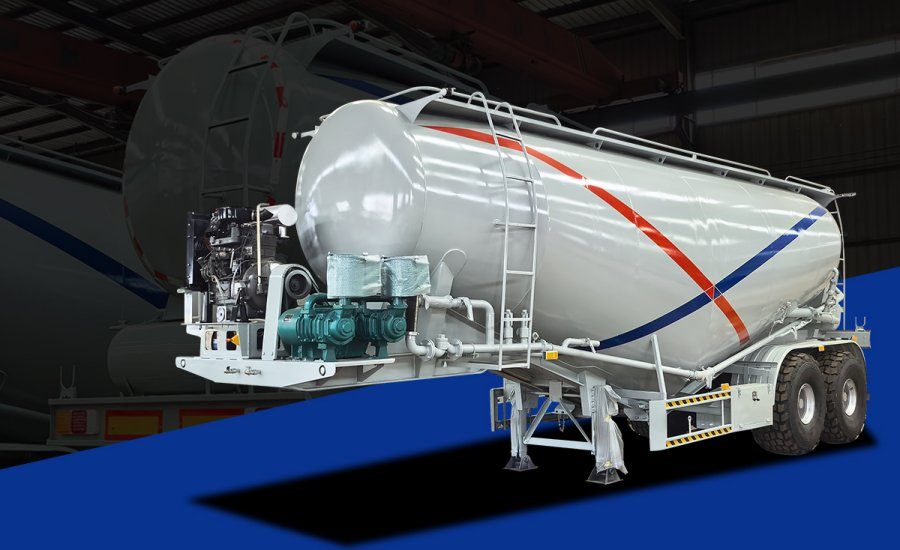

2 Axle Cement Trailer

2 Axle Cement Trailer

Unloading time with a 2 axle cement trailer can be reduced by 5 to 10 minutes compared to conventional vehicles of the same type, significantly improving unloading efficiency and saving transportation time.

Product Details

A bulk cement trailer uses its own engine or a borrowed engine to drive an air compressor via a power take-off drive shaft or pulley. This air is then fed through a pipe into the air chamber of a sealed, two-axle bulk cement tanker. When the pressure inside the tanker reaches the rated operating pressure, the discharge butterfly valve opens, allowing the powdered material to be discharged through the discharge system. Unloading time with a 2 axle cement trailer can be reduced by 5 to 10 minutes compared to conventional vehicles of the same type, significantly improving unloading efficiency and saving transportation time.

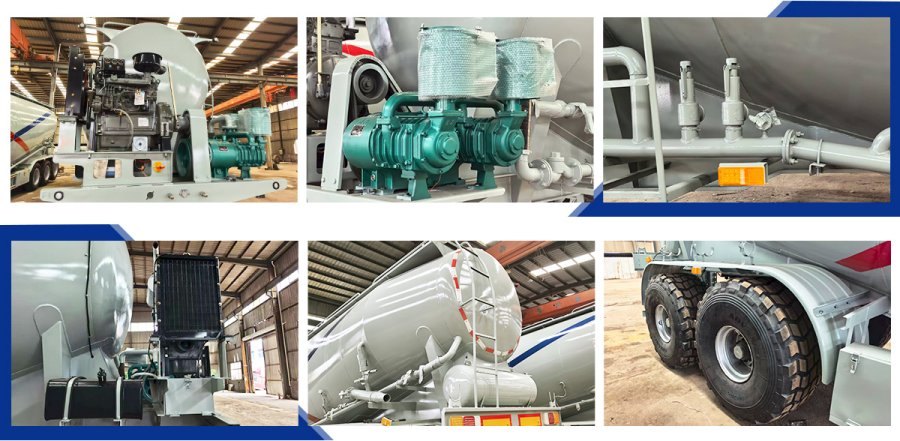

2 axle cement trailer.jpg

2 axle cement trailers feature a relatively large tank design volume, typically around 35-60 cubic meters, which can accommodate the transport of large quantities of powdered and granular materials, reducing transportation time and costs. For example, bulk tanker trailers offer significant advantages in long-distance transport of materials such as cement and fly ash.

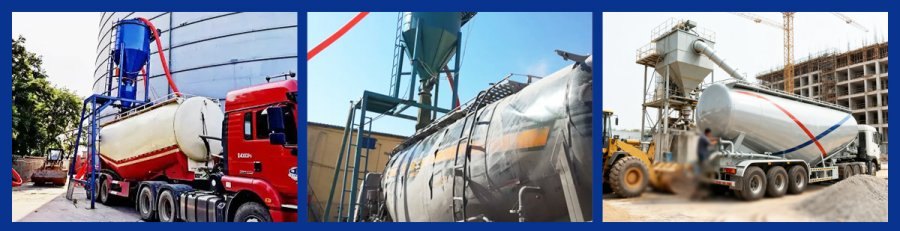

Applications of a bulk cement trailer

Bulk cement tanker trailers can transport a variety of powdered and granular materials, such as cement, fly ash, lime powder, mineral powder, urea, soda ash, silica fume, foundry sand, and titanium dioxide, offering high versatility. Different materials can choose the appropriate tank material and structure according to their characteristics to meet the transportation needs of different users.


Specifications of 2 axle cement trailer

BrandChengda
Loading Capacity40CBM
Axle Weight Load13T
Axle number2, 3
Axle BrandFUWA
SuspensionCommon mechanical
King Pin2" or 3.5" traction pin
Dimensions (LxWxH)13000*2500*4200mm
Support legs28T
Wheel Rim9.0-22.5
Accessories1 Set standard tool box
LightTail lamp with turn signal, brake light & reflector, side lamp etc.
Painting1coat of anti corrosive primer,  twice coats of final paint
compressorBOHAI brand 14M3
Tire spe.12R22.5 Chinese brand

Packaging and transportation

Nude and wax, bulk carrier, flat deck, or roll-on/roll-off.

(1) Wax: During transportation, the wax spraying process will cause seawater corrosion to the trailer body.

(2) Packaging: Stable fixation with steel wire to protect the trailer during transportation.

(3) Transportation: Reputable freight suppliers provide reliable logistics services to make the transportation process safe and timely.


Why choose us?

Founded in 2005, it is one of the qualified manufacturers of various trailers, including 2 axle cement trailers, lowbed semi-trailers, flatbed semi-trailers, and freight trailers. Integrating production, scientific research, development, and professional sales teams, it can

Offer a comprehensive range of services for semi-trailers, trucks, construction equipment, and related parts.
