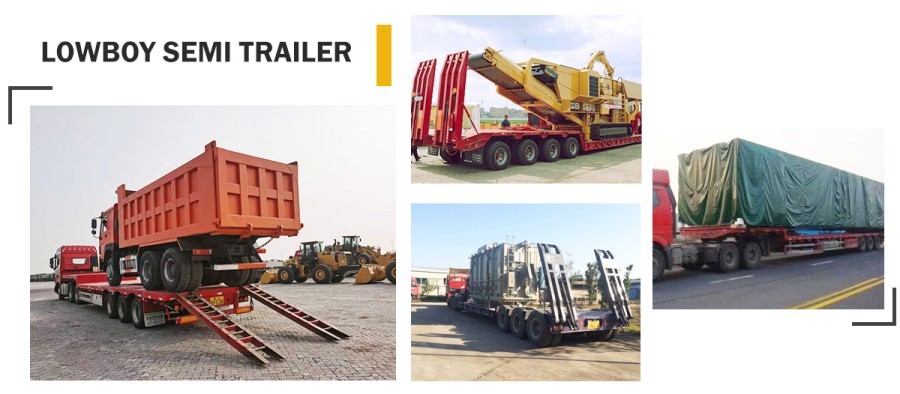

3 axle lowboy trailers are primarily used for medium- and long-distance freight transport, mainly for transporting tracked cranes, excavators, tracked loaders, bulldozers, railway equipment, and other tracked/tireed equipment.

Advantages of 3 axle lowboy trailer
1. The very low loading platform height results in a low center of gravity, providing excellent stability and safety during transport and ensuring cargo integrity.
2. Three axles distribute the load evenly, reducing tire and road wear and effectively extending the trailer's lifespan.
3. A complete transportation solution offers more customized options to meet your various transportation needs.

Specifications
The following data can be customized according to the regulations and requirements of your region.
| Trailer Model | Lowbed Trailer |
| Overall Dimension (Lx W x H) | 13000*3000*1650mm |
| Loading Weight | 60Tons |
| Tare Weight | 8Tons |
| Main Beam | Q345B, Main frame is height 500mm, upper plate 16mm, down plate 18mm, middle plate 10mm |
| Side Beam | Q235B, 16# channel steel |
| Rim | 8.25*22.5 |
| Landing Gear | Standard 28Tons |
| King Pin | 50# (2 inches) or 90# (3.5 inches) |
| Suspension System | Mechanical or air suspension |
| Axle Brand | FUWA 13-16Tons |
| Tire Type and quantity | 1100R20 12units |

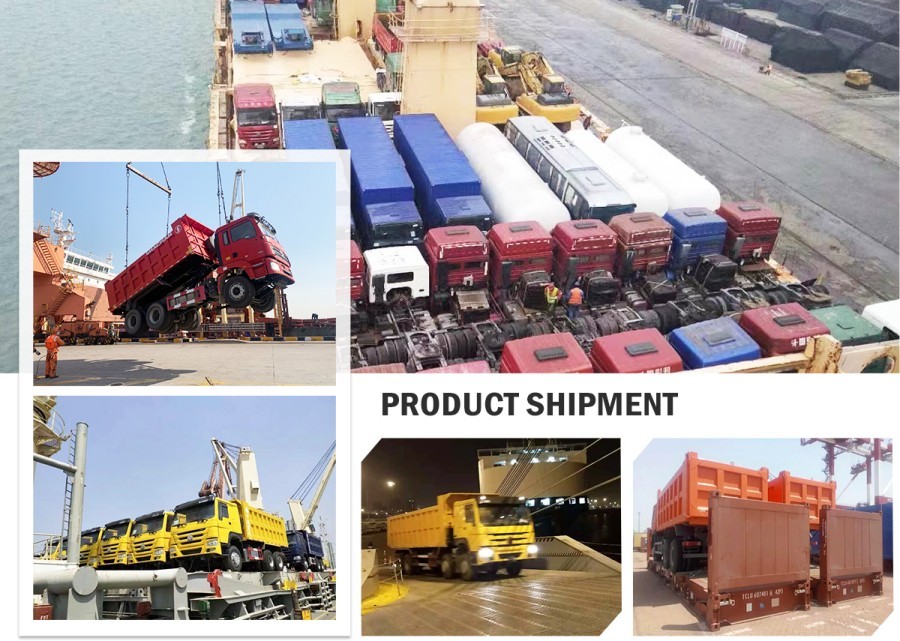

Packaging and Shipping
Naked, polished with water wax before shipment.
1. By 40ft/45ft/40fr container
2. Bulk/RORO vessel
3. As per your requirements.
To prevent seawater corrosion, we carefully wrap the goods with film or cover them with waterproof tarpaulins, ensuring they maintain a good appearance when they arrive in Africa, Australia, and even South America.

Why Choose Us?

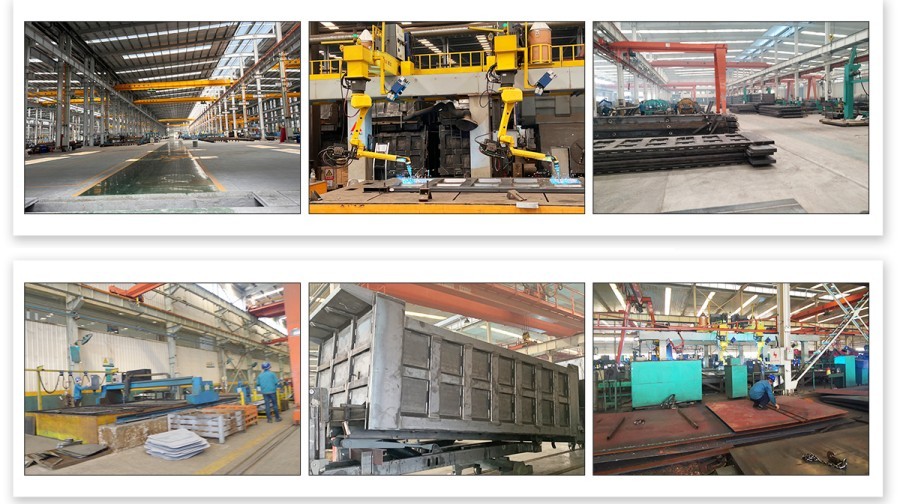

Chengda Group is a professional exporter of semi-trailer and trailer parts. Our company owns its own semi-trailer and trailer parts factory. Currently, the company mainly specializes in manufacturing 3 axle lowboy trailers, flatbed semi-trailers, skeleton semi-trailers, cargo transport semi-trailers, tanker semi-trailers, bulk cement semi-trailers, dump truck semi-trailers, etc.
