3 Axle Cargo Trailer
3 axle cargo trailers are medium- and long-distance freight vehicles with a flatbed cargo area.
- Home >
Send Inquiry
Chat Now
Product Details
3 axle cargo trailers are medium- and long-distance freight vehicles with a flatbed cargo area. Suitable for medium- and heavy-duty and bulk cargo transportation, they feature simple structure and strong adaptability, making them a top choice for medium- and long-distance freight transport.
Advantages of 3 axle cargo trailer
1. High-strength steel frame for greater robustness, reducing maintenance costs and extending service life;
2. Reduced fuel consumption by lowering the trailer's weight;
3. High-profile front panels effectively prevent cargo spillage during transport.
Applications of cargo semi trailer
3 axle cargo trailers are favored by logistics companies for their versatility. They have been used to load various products and materials, such as sand, bags, poultry, and livestock. Bulk cargo-sided semi-trailers are also widely used in the transportation industry.
Specifications
| Overall Dimensions（L x W x H）(mm) | 12500x2500x2550 |
| Cargo box dimension (L x W x H)(mm) | 12000X2300X600 |
| Main beam | The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm material:Q345B |
| Side beam | Q235 16# channel steel |
| Axle | 13Ton, Fuwa brand option one hundred fifty thousand Kilometers no need maintenance |
| Tires | 12R22.5, 12 pcs. Taitong brand |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| King pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
| Landing gear | 28 ton single action supporting legs |
| Steel spring | 10/10/10 leaf spring suspension |
| Air chamber | Six double air chamber |
Packaging and Transportation
1. Partial shipment
2. Roro shipment
3. Containerized shipment
Why Choose Us?

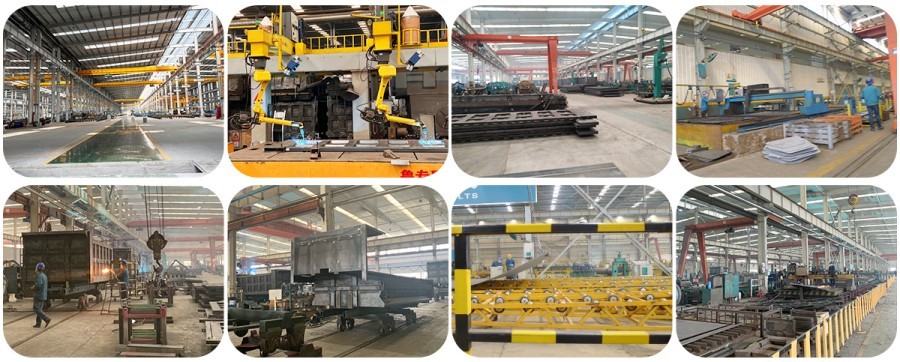

Our company, established in 2005, is a professional manufacturer integrating production, research and development, and sales. We offer a range of trailers, including tanker trailers, 3 axle cargo trailers, and flatbed semi-trailers.
With high-standard machinery and automated equipment, a strong R&D team, and an elite sales team, we have partnerships with companies such as Sinotruk, Shacman, FAW Group, DFAC, XCMG Group, LiuGong Group, and SEM Group. Our mature after-sales system allows us to meet the diverse needs of our clients.
