Cargo Fence Semi Trailer
Chengda cargo fence semi trailers are generally used to transport bulk cargo, primarily for long-distance transport.
Cargo Fence Semi Trailer
- Home >
- Cargo Fence Semi Trailer
Cargo Fence Semi Trailer
Send Inquiry
Chat Now
Product Details
Chengda cargo fence semi trailers are generally used to transport bulk cargo, primarily for long-distance transport. For large-volume transport or specialized needs, we can customize the design, including platform trailers and other modified vehicles.
Features of cargo fence semi trailer
1. The length and width of the low bed are customizable.
2. Highly sturdy structural steel with tensile strength and high load capacity, with a load capacity of 40 tons.
3. Heavy-duty mechanical spring suspension meets high-load demands.
Specifications of cargo fence trailer
We can manufacture fence trailers from 30 to 80 tons, tailored to your requirements, and can also design fences with varying wall and fencing heights and axle counts.
| Overall Dimensions（L x W x H）(mm) | 12500x2500x2550 |
| Cargo box dimension (L x W x H)(mm) | 12000X2300X600 |
| Main beam | The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm material:Q345B |
| Side beam | Q235 16# channel steel |
| Axle | 13Ton, Fuwa brand option one hundred fifty thousand Kilometers no need maintenance |
| Tires | 12R22.5, 12 pcs. Taitong brand |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| King pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
| Landing gear | 28 ton single action supporting legs |
| Steel spring | 10/10/10 leaf spring suspension |
| Air chamber | Six double air chamber |

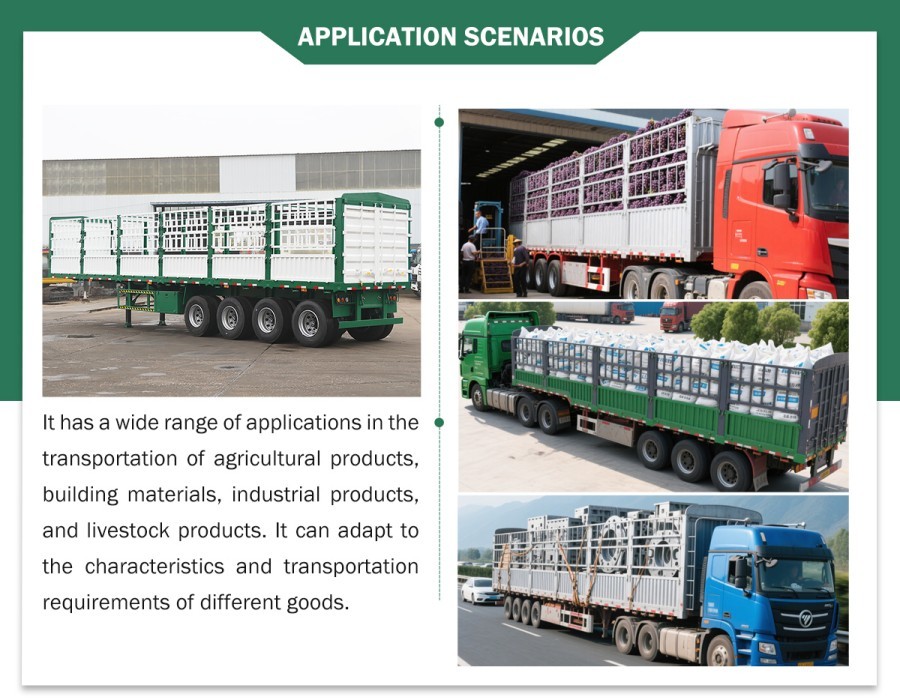

Applications of cargo fence semi trailer
Packaging and Shipping
Based on customer requirements and cost-effectiveness, we can ship our cargo fence trailers via various modes of transport, including bulk carriers, roll-on/roll-off vessels, and 40-foot flatbed containers, helping you save costs.
Why Choose Us?
Chengda Group, established in 2005, specializes in the production of a wide range of cargo fence semi trailers, providing high-quality products and the best service. We are also a Sinotruk agent, and our main products include tractors, dump trucks, and tank trucks. We welcome customers from all walks of life to visit our factory and establish cooperative relationships with us.
